迈向市场辅助的人工智能：通过拍卖获得模型集成以服务流式数据的云端推理

Yining Zhang, Lei Jiao, Member, IEEE, Konglin Zhu, Xiaojun Lin, Fellow, IEEE, and Lin Zhang, Member, IEEE

Index Terms—Ensemble learning, inference, data stream, cloud computing, online optimization, auction.

It is very common for cloud services to perform machine learning inference in real time upon requests from end users [1], [2]. Often, as time goes, the inference accuracy of the service provider's model may vary or even irreversibly decrease because of concept drifts [3], [4], i.e., the existing model can no longer infer the best label for the data. One solution is to retrain or dynamically update the model as concept drifts are detected. However, for real-time inference on users' request streams, this could be infeasible due to insufficient training data, long delay of training, or prohibitive computation overhead. In contrast, ensemble methods [5], [6], [7] can combine multiple complementary pretrained models, including the service provider's model and those provided by others (which we can call model providers), to achieve better accuracy and resilience against concept drifts without detecting them explicitly, thus providing an intriguing alternative.

In fact, the service provider can engage in model transactions through AI model marketplaces with model providers [8], [9], [10], [11]. To incentivize the model providers to contribute their models, a monetizing mechanism is needed. Some AI marketplaces adopt direct pricing [12], [13], which can be less ideal due to the risk of mispricing [14], the lack of market efficiency, and the inability to adapt to real-time demand and supply. Auctions can address these disadvantages. In this paper, we advocate an auction-based approach, where the service provider can be the auctioneer and purchase models from the model providers that act as the bidders.

Unfortunately, designing such an auction and control mechanism faces multiple challenges, as the service provider has to optimally operate the system both by assembling the ensemble and performing inference in the "front end", and by jointly conducting auctions and managing models in the "back end". The first is how to control the dynamic balance, in an online manner, between system overhead and inference accuracy upon users' data stream as the system operates continuously. Combining more models to form the ensemble may lead to better inference accuracy, but having too many models could incur excessive model hosting cost. Whether to discard a model is also tricky as it involves "time-coupled" decisions [15]—keeping the model local could save the model downloading cost from model providers if this model is needed in the future, but it could cause waste if this model is not needed later. That is, the models need to be selected and deployed in terms of not only the incurred cost, but also the contribution to the inference loss of the ensemble. The unknown and unpredictable time-varying system environments and concept drifts, as well as the nonlinearity of both the cost and the inference loss functions, all escalate the difficulty and the complexity of the problem.

The other challenge is how to design the repetitive auctions that attain the desired economic properties, including truthfulness (i.e., a bidder maximizes its utility by not cheating about the bidding price) and individual rationality (i.e., a bidder has no loss on utility regardless of the auction outcome). The well-known Vickrey-Clarke-Groves (VCG) auctions [16] often require exactly solving the underlying social cost problem which can be intractable in our setting. The service provider may also desire to incentivize the long-term participation [17], [18], [19], [20] of model providers across auctions. Without a sufficient number of participants, the service provider may struggle to gather good models; if a model provider rarely wins in the auctions, it may quit permanently. Consequently, selecting the winning bids needs to consider not only the current auction but also existing and future auctions in the long term—buying a bid now could be unnecessary if the future bids end up cheaper or offer better models; but not buying it now could force us to buy bids later, even if they turn out to be costly or inferior. This interlacement between long-term participation and economic properties has not been typically studied previously.

Existing research is not adequate for addressing the aforementioned challenges. The work in [21], [22], [23], [24], [25], and [26] studies ensemble methods, but generally neglects the system environment where such methods are executed. The work in [27], [28], [29], [30], [31], and [32] investigates ensemble learning specifically in cloud and/or edge environments, but neither targets an online and data streaming setting nor accounts for the auction mechanisms. The work on AI model markets [12], [13], [33], [34], [35], [36] also falls short, either overlooking economic interactions or lacking consideration of ensembles or the joint optimization of system performance. See Section VII for our more detailed discussions.

In this paper, we model the joint cost and inference structure of an auction-assisted ensemble-learning service for streamed data samples. We formulate a social cost minimization problem over time for the service provider, considering model hosting cost, model downloading cost, ensemble inference loss, payment flows, and the utility of model providers. Our formulation features arbitrarily time-varying inputs, time-coupled switching-cost terms, and long-term constraints, capturing all the aforementioned challenges. Our problem is a non-linear mixed-integer program, and is unsurprisingly NP-hard.

We propose a universal mechanism to select winning bids, allocate payments, host models, and conduct ensemble learning, regardless of the types of the models that comprise the ensemble. To that end, we design a holistic set of polynomial-time online algorithms that work together. In each auction, first, given the model hosting decisions, we design the Online Fractional Algorithm (i.e., Algorithm 1) to make fractional bid selections based on alternate descent-ascent primal-dual steps for a reformulation that absorbs the long-term constraint into the objective by a well-designed proximal term [37], [38]. Next, we design the Randomized Rounding Algorithm (i.e., Algorithm 2) to convert such fractional decisions into more tangible integer bid selections in a randomized manner without violating the residual constraints. Further, we design the Payment Allocation Algorithm (i.e., Algorithm 3) to replace VCG and calculate payments to the bids based on the actual fractional decision and bidding price and the envisaged fractional decisions with alternative bidding prices. Then, we design the Model Hosting Algorithm (i.e., Algorithm 4) that ties the repetitive auctions over time and invokes Algorithms 1 and 2 to select and deploy models via comparing in real time the most recent downloading cost of switching from previous models to the current models versus the cumulative hosting cost of retaining the current models since the last switch operation. Finally, we design the Ensemble Learning Algorithm (i.e., Algorithm 5) to combine the inference results of the models from Algorithm 4 as a weighted sum to produce the joint result for each data sample, while updating the weights in an exponential manner as data samples arrive [39].

We provide a thorough analysis of our proposed algorithms by formally proving a series of theorems. We exhibit that the dynamic regret and the dynamic fit [38], [40] are sub-linear, i.e., as the total number of time slots grows, the difference between the time-averaged bidding cost incurred by our online approach and its time-averaged offline optimum gradually vanishes, so does the time-averaged violation of the long-term participation. We show that truthfulness and individual rationality are met in expectation. We further imply that the inference loss generated by our ensemble method is upper-bounded by a constant times that generated by the single best model out of our selected models. Based on that, we establish the competitiveness, i.e., the social cost over time incurred by our online approach is no greater than a constant times the sum of the offline optimal cost over time plus the cumulative inference loss of the single best model for each time slot.

Finally, we implement and test a classification service upon multiple real-world time-lapse data streams [41], [42] and benchmark datasets [43], [44], with up to 64 model providers at geographically-distributed clouds worldwide [45], [46] under realistic settings [17], [20], [47], [48]. Our evaluations reveal the following results: (i) Compared to the baselines of the Random method, the Greedy method, and the state-of-the-art-based DTEL+ and DES+ method, our approach reduces the long-term social cost on average by 70%, 37%, 35%, and 46%, respectively, with the empirical competitive ratio of 2.1 ∼ 2.7; (ii) Our approach achieves truthfulness and individual rationality in every auction; (iii) Our approach incurs the lowest dynamic regret and the lowest dynamic fit, which only grow slowly with time; (iv) Our approach attains an inference accuracy of about 2% ∼ 9% higher than DTEL+ and DES+; (v) Most of our algorithms complete in a few seconds for each auction with the delay-insensitive payment calculated in less than a minute, meeting the needs in reality.

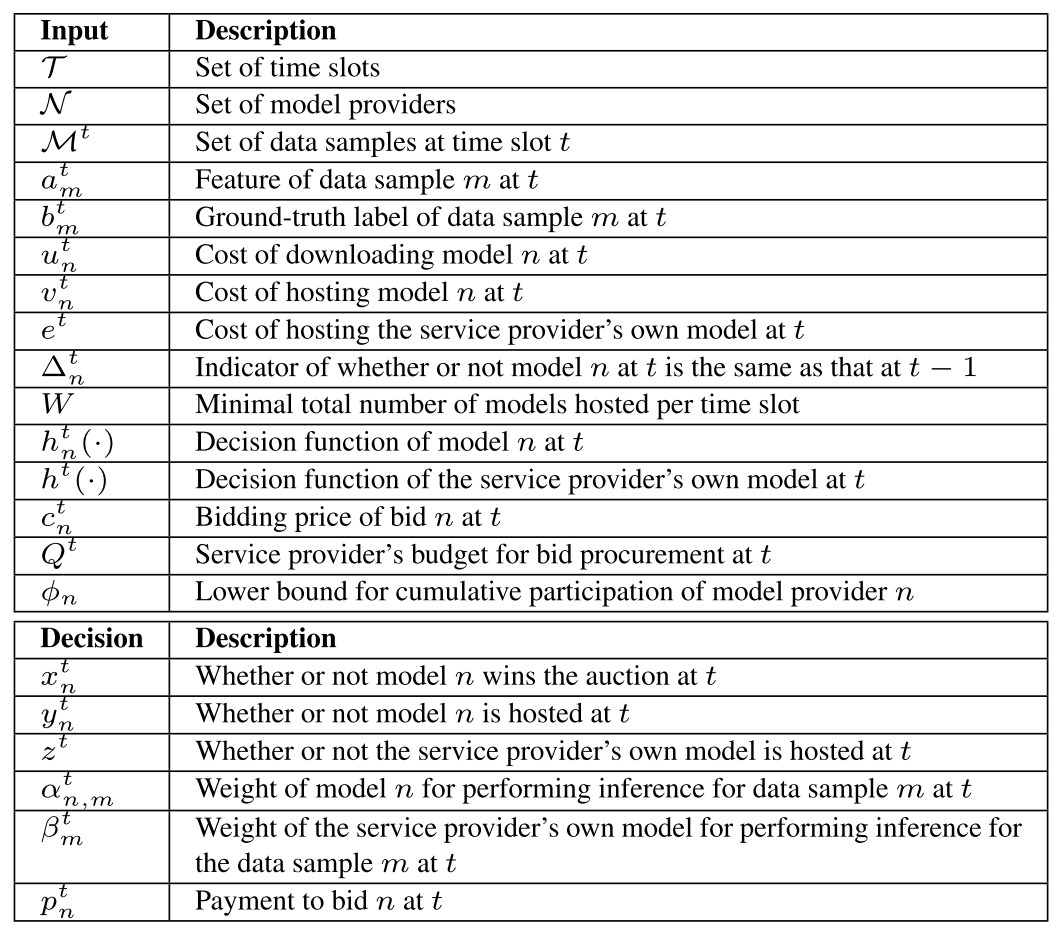

We summarize all our major notations in Table I.

Machine Learning Service: We consider a machine learning service that continuously conducts inference upon a stream of data samples submitted by the end users. This machine learning service can be provisioned and operated by a service provider in the service provider's own data center or a public cloud. The data samples arrive dynamically over a series of consecutive time slots $\mathcal{T}=\{1,2,\dots,T\}$. For the time slot $t\in\mathcal{T}$, we use $\mathcal{M}^t=\{1,2,\dots,M^t\}$ to index the data samples that arrive during $t$. For the data sample $m\in\mathcal{M}^t$, we represent it as $\{a^t_m,b^t_m\}$, where $a^t_m$ refers to its feature values and $b^t_m$ refers to its ground-truth label.

Models and Costs: Besides its own model, the service provider can purchase models from the model providers, denoted as $\mathcal{N}=\{1,2,\dots,N\}$, via the auction market as elaborated below and then download the purchased models for the local deployment. We consider each model provider offers one model; a model provider that offers multiple models can be treated as multiple "virtual" model providers. We use $u^t_n$ to denote the cost (e.g., traffic, delay) of downloading the model from the model provider $n\in\mathcal{N}$, i.e., the model $n$, at the time slot $t$, and use $v^t_n$ to denote the cost (e.g., resource, energy consumption) of hosting the model $n$ at the service provider's facility at $t$. A model provider may offer different models as time goes, so we use $\Delta^t_n\in\{1,0\}$ to imply whether or not the model $n$ at $t$ stays the same as at $t-1$. We also use $e^t$ to denote the cost of hosting the service provider's own model at $t$. Without loss of generality, for the ensemble learning to be described next, we envisage that the service provider wants to host a minimum number $W\ge 1$ of models at any $t$, where $W$ is set based on the needs and capacity of the service provider.

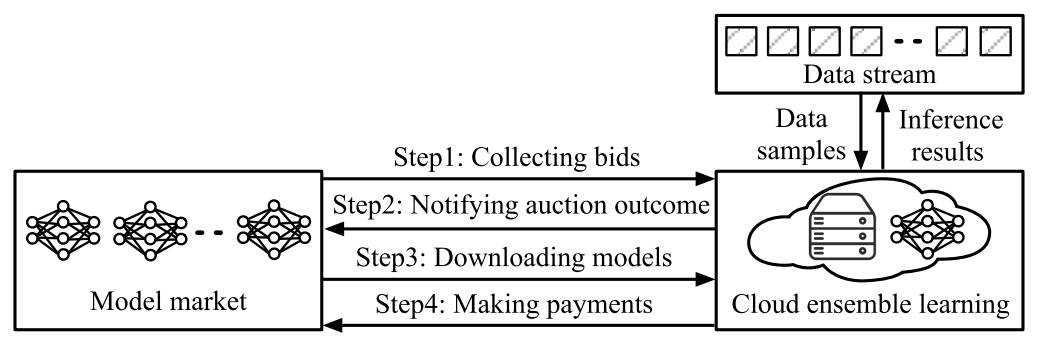

Model Auctions: The service provider acts as the auctioneer, and the model providers act as the bidders. At each time slot $t$, the auctioneer conducts an auction, as shown in Fig. 2:

To decide the winning bids, the auctioneer needs to solve the social cost minimization problem, which will be described next. For the auction at $t$, the auctioneer has the budget $Q^t\ge 0$, indicating the maximum number of models that can be purchased. To incentivize the long-term participation of model providers, we use $\phi_n\in[0,1]$ to imply the participation threshold [17], [18]. That is, across all the $T$ auctions, each model provider $n$ should win for no less than $T\cdot\phi_n$ times; otherwise, we consider that the model provider $n$ may quit the marketplace permanently. Step 4 may appear before Step 3, depending on the agreement in the market.

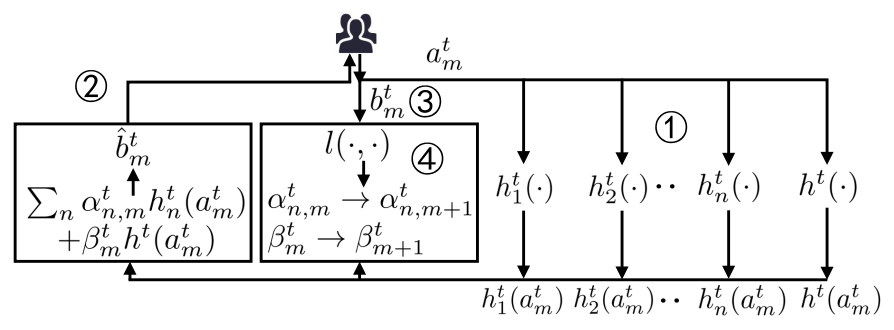

Ensemble Learning: At the time slot $t$, after deploying the models, the machine learning service employs ensemble learning to perform inference sequentially upon the data samples $\mathcal{M}^t$ by combining the inference results of different models. This workflow is as follows, shown in Fig. 3.

The aforementioned process of conducting the inference first and receiving the ground truth afterward can capture many real-world applications such as ads recommendation systems [49], [50] and keyboard input methods [51]. Without loss of generality, we consider the squared loss function $l(\cdot,\cdot)$. Thus, we can denote the total cumulative loss incurred upon the entire data stream as $\sum_t\sum_m l(\hat{b}^t_m,b^t_m)=\sum_t\sum_m((\sum_n\alpha^t_{n,m}h^t_n(a^t_m)+\beta^t_mh^t(a^t_m))-b^t_m)^2$.

Control Variables: The service provider needs to make the following control decisions. We use $x^t_n\in\{1,0\}$ to denote whether or not the model $n$ wins the auction at the time slot $t$. We use $y^t_n\in\{1,0\}$ to denote whether or not the model $n$ is hosted and deployed by the machine learning service at the time slot $t$. We use $z^t\in\{1,0\}$ to denote whether or not the machine learning service hosts and deploys its own model at the time slot $t$. We use $\alpha^t_{n,m}\in[0,1]$ to denote the weight of the purchased model $n$ for performing inference for the data sample $m$ at the time slot $t$. We use $\beta^t_m\in[0,1]$ to denote the weight of the service provider's own model for performing inference for the data sample $m$ at the time slot $t$. We also use $p^t_n\ge 0$ to denote the payment made to the model provider $n$ at the time slot $t$.

Cost of Auctioneer: The cost incurred at the machine learning service at $t$ has the following components: (i) Cost of hosting models $\sum_n v^t_n y^t_n+e^t z^t$; (ii) Cost of downloading models $\sum_n(\Delta^t_n u^t_n[y^t_n-y^{t-1}_n]^+ + u^t_n y^t_n(1-\Delta^t_n))$, where $[\cdot]^+=\max\{\cdot,0\}$; (iii) Payment made to bidders $\sum_n x^t_n p^t_n$.

Cost of Bidders: The cost incurred at the model providers at $t$ refers to the cost of training or producing the model (i.e., bidding price) determined by each model provider, minus any payment received from the service provider: $\sum_n x^t_n(c^t_n-p^t_n)$.

Social Cost Minimization: The social cost refers to the sum of the cost of the service provider and the cost of the model providers over time, plus the cumulative inference loss upon the entire data stream. We formulate the social cost minimization problem $\mathcal{P}_0$ as follows. Note that the payment terms cancel one another, but the payments still need to be determined later to satisfy the desired economic properties.

The objective (1) minimizes the social cost. Constraint (1a) ensures the minimum number of models for ensemble learning. Constraint (1b) enforces the purchase budget. Constraint (1c) normalizes the weights, without loss of generality. Constraint (1d) and (1e) ensure that the weight can be non-zero only if the corresponding model is hosted. Constraint (1f) ensures that a model can be hosted only if the corresponding bid wins in the auction. Constraint (1g) ensures the long-term participation. The domains for the decision variables are specified finally.

Algorithmic Challenges: Solving the problem $\mathcal{P}_0$ online is non-trivial due to multiple fundamental challenges. First, the switching cost term $\sum_t\sum_n\Delta^t_n u^t_n[y^t_n-y^{t-1}_n]^+$ couples every time slot $t-1$ and its next time slot $t$. At $t-1$, as we have no idea whether we will want to host the model at $t$, it is difficult to decide $y^{t-1}_n$ to optimize the switching cost between $t-1$ and $t$. Second, the long-term constraint of participation $\sum_t x^t_n\ge\sum_t\phi_n$ needs to be considered carefully. Determining $x^t_n$ at the current time slot $t$ affects not only the cost at $t$ but also the determination of $x^t_n$ for future $t$, in order to satisfy this constraint. Third, our problem is nonlinear and NP-hard. If we ignore all the terms related to $x$, $z$, $\alpha$, $\beta$ and the switching cost, our problem could then become the minimum-cost knapsack problem, which is known to be NP-hard. Solving an NP-hard problem on the fly as the inputs gradually reveal themselves can be more challenging. Fourth, we need to decide each winner's payment to satisfy the economic properties of truthfulness and individual rationality, as it is intertwined with the previous three challenges.

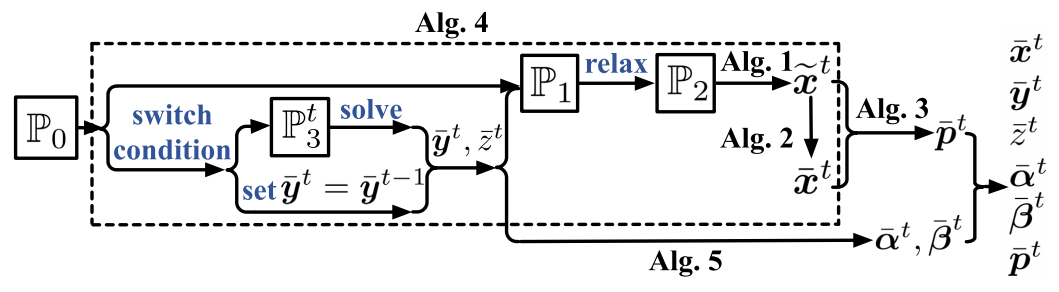

Algorithms Roadmap: Our mechanism design incorporates a set of polynomial-time online algorithms to overcome the aforementioned challenges, as shown in Fig. 4. Section III describes our Algorithms 1, 2, and 3. Algorithm 1 outputs the fractional bid-selection decisions while accommodating the long-term constraint, and Algorithm 2 converts such fractional decisions into integers. Algorithm 3 further determines the payment for each bid. In this section, we define and prove the dynamic regret and the dynamic fitness with Algorithms 1 and 2, and also define and prove the truthfulness and the individual rationality with Algorithm 3. Section IV describes our Algorithms 4 and 5. Algorithm 4 makes dynamic trade-offs between switching to a new decision and keeping the previous decision regarding model hosting, while actually invoking Algorithms 1 and 2 for bid selections. Algorithm 5 updates the weights for all the deployed models while conducting ensemble learning upon the data stream. In this section, we prove the competitive ratio of our entire approach, and also prove the loss bound of ensemble learning.

We note that if $y^t$ is given (which will be further described in Section IV-A), then we can actually extract the following problem $\mathcal{P}_1$ from the original problem $\mathcal{P}_0$:

For a concise presentation, we denote the objective function of $\mathcal{P}_1$ as $f^t(x^t)=\sum_n x^t_n c^t_n$. We also denote $g^t_n=\phi_n-x^t_n,\ \forall n\in\mathcal{N}$; $g^t(x^t)=[g^t_1,\dots,g^t_N]$; $h^t_n=x^t_n-y^t_n,\ \forall n\in\mathcal{N}$; $h^t(x^t)=[h^t_1,\dots,h^t_N]$; and $d^t(x^t)=\sum_n x^t_n-Q^t$. We can further relax the bid-selection control variables to the real domain, and thus transform $\mathcal{P}_1$ to a linear program. That is,

Solving the above problem $\mathcal{P}_2$ is equivalent to solving its min-max version as follows:

where $\lambda^t$ is the Lagrange multiplier at $t$, and the long-term constraint (3c) has been absorbed into the objective so that we do not have to worry about it at this point. Based on (4), we can now solve $\mathcal{P}_2$ on the fly at each $t+1$ by a standard dual ascent step to update the dual variable $\lambda^{t+1}$ as in (5), and a modified descent step to minimize $L^t(x,\lambda^{t+1})$ and obtain the fractional solution $\tilde{x}^{t+1}$ as in (6).

where $\eta>0$ is the step size; $\nabla_{\lambda}L^t(\tilde{x}^t,\lambda^t)$ is the gradient of $L^t(\tilde{x}^t,\lambda)$ given $\lambda=\lambda^t$; and $\tilde{x}^t$ is the fractional solution previously solved at $t$.

where $\gamma$ is a predefined constant and $\nabla f^t(\tilde{x}^t)$ is the gradient of $f^t(x)$ at $x=\tilde{x}^t$. This can be called a Modified Online Saddle-Point (MOSP) method [38]. MOSP differs from Online Mirror Descent (OMD), since standard OMD does not involve primal-dual updates [52], [53], but primal-dual-related OMD and its variants do not often capture either the constraint violation or the long-term time-varying constraints [54], [55], [56], [57], [58], [59], [60]. MOSP also relates to constrained online learning, as the latter focuses on the long-term time-invariant constraints [61], [62], [63], [64] or the static regret [65], [66], [67], [68]. Algorithm 1 follows exactly the above idea. Through such alternate descent-ascent steps, we solve for $x^{t+1}$ and $\lambda^{t+1}$ at each $t+1$ using only the inputs that have been known before $t+1$ rather than the unknowable future information beyond (and including) $t+1$. $L^t(x,\lambda^{t+1})$ is approximated by $\nabla f^t(\tilde{x}^t)(x-\tilde{x}^t)+\lambda^{t+1}g^t(x)$, and $\frac{1}{2\gamma}\|x-\tilde{x}^t\|^2$ is a regularization and proximal term. The problem (6) is solvable using standard convex optimization solvers which can find the $\nu$-accurate optimal solution in $O(N^2\log(1/\nu))$ time [69] via the interior-point method, for example.

Algorithm 2 converts the fractional bid-selection decisions from Algorithm 1 into integers through a randomized rounding process without violating the constraints (2a) and (2b) during rounding while ensuring the expectation of each integer after rounding equals the corresponding fraction before rounding. Such expectation preservation is important for Algorithm 3.

Fractions scaling as in Lines 2~5 adjusts the fractions and ensures that the sum of the fractions after adjusting equals an integer. In Line 4, after adjusting, each column of $\tilde{W}^t$ either increases by multiplying $\omega_1>1$ or decreases by multiplying $\omega_2<1$. Thus, we have $\mathbb{E}[\tilde{X}'^t]=\frac{\lceil\epsilon\rceil}{\epsilon}\tilde{W}^t\cdot(\epsilon-\lfloor\epsilon\rfloor)+\frac{\lfloor\epsilon\rfloor}{\epsilon}\tilde{W}^t\cdot(\lceil\epsilon\rceil-\epsilon)=(\lceil\epsilon\rceil-\lfloor\epsilon\rfloor)\tilde{W}^t=\tilde{W}^t$. We should mention that the sum of $\tilde{x}^t_n$ increases to at most $\lceil\epsilon\rceil$, and $Q^t$ is an integer, so (2b) still holds after adjusting; and (2a) always holds.

Fractions rounding as in Lines 7~14 iteratively selects a pair of fractions and converts at least one of them into an integer in each iteration. Since the sum of all columns is an integer beforehand due to the previous step, it can be guaranteed that $\tilde{X}'^t$ as a vector only contains 0 and 1 after the loop. In Line 10, the sum is preserved, because $\tilde{x}''^t_{n_1}+\tilde{x}''^t_{n_2}=(\tilde{x}'^t_{n_1}+\phi_1)+(\tilde{x}'^t_{n_2}-\phi_1)=\tilde{x}'^t_{n_1}+\tilde{x}'^t_{n_2}$, for example. Also, the expectation is preserved. We note that Lines 9 and 10 guarantee that in each iteration of the loop at least one fraction will be rounded to either 0 or 1. This fractions rounding phase borrows the idea of dependent rounding [70]. The time complexity of Algorithm 2 is $O(N)$.

Algorithm 3 calculates the payments to the winning bids output by Algorithm 2. Following the sufficient and necessary conditions for a randomized auction to be both truthful and individually rational [71], which will be formally defined in Section III-E, we use Line 2 to calculate the payment to the winning bids. Our auction at each time slot $t$ has become a randomized auction due to Algorithm 2. We note that the fractional solution $\tilde{x}^t_n$ can be considered as a function of $c^t_n$ and $c^t_{-n}$, where the former is the bidding price reported by the bid $n$ and the latter is what is reported by all the other bids, because the value of $\tilde{x}^t_n$ is calculated by Algorithm 1 using $c^t_n$ and $c^t_{-n}$ as the inputs. In other words, Algorithm 1 can be considered as the mapping from $c^t_n$ and $c^t_{-n}$ to $\tilde{x}^t_n$. In a function format, we can just write $\tilde{x}^t_n(c^t_n,c^t_{-n})$.

In Line 2 of Algorithm 3, to calculate the integral, we need to vary the value of $c^t_n$, simply denoted as $c$ here, keep $c^t_{-n}$, and invoke Algorithm 1 to calculate the corresponding $\tilde{x}^t_n$. The integration interval's upper limit $\chi^t_n$ needs to be set to satisfy the requirements in Theorem 2 which will be stated later. Specifically, we need to find out the value of $\chi^t_n$ for $n$ at $t$, such that $\int_0^{\chi^t_n}\tilde{x}^t_n(c,c^t_{-n})dc<\infty$ and $\int_{\chi^t_n}^{\infty}\tilde{x}^t_n(c,c^t_{-n})dc=0$. Toward that end, we focus on the problem (6), whose objective function is as follows, where $x^{t+1}_n,\forall n$ are the decision variables and $\lambda^{t+1}_n,\forall n$ come from (5): $\sum_n(c^t_n(x^{t+1}_n-\tilde{x}^t_n)+\lambda^{t+1}_n(\phi_n-2x^{t+1}_n+y^{t+1}_n)+\frac{(x^{t+1}_n-\tilde{x}^t_n)^2}{2\gamma})$.

Note that this is a summation of a series of quadratic functions. For each $n$, we desire that, in the interval $[0,1]$, its optimal $x^{t+1}_n$ is 0. From the geometric image, we know that this can only be achieved when the vertical symmetry axis of the quadratic function falls on the non-positive half of the horizontal real axis. That is, we require $\tilde{x}^t_n-\gamma c^t_n+2\gamma\lambda^{t+1}_n\le 0$, i.e., $c^t_n\ge\frac{\tilde{x}^t_n}{\gamma}+2\lambda^{t+1}_n$. Then we conclude that $\chi^t_n=\frac{\tilde{x}^t_n}{\gamma}+2\lambda^{t+1}_n$. The time complexity of Algorithm 3 is $O(N^3 i\log(1/\nu))$, where $i$ is the number of segments when dividing the range of $\chi^t_n-c^t_n$ for calculating the integral numerically.

We define and adopt the dynamic regret and the dynamic fit as the performance metrics. We prove that the dynamic regret and the dynamic fit of our algorithms grow only sub-linearly along with the length of the entire time horizon.

Definition 1 (Dynamic Regret and Dynamic Fit): The dynamic regret and the dynamic fit for the problem $\mathcal{P}_1$ are defined as follows, respectively: $\mathrm{Reg}_T:=\mathbb{E}[\sum_{t=1}^{T}f^t(\bar{x}^t)]-\sum_{t=1}^{T}f^t(x^{t*})$, $\mathrm{Fit}_T:=\|[\mathbb{E}[\sum_{t=1}^{T}g^t(\bar{x}^t)]]^+\|$, where for each $t$, $\bar{x}^t$ is the output of Algorithm 2 as described previously; $x^{t*}\in\arg\min_{x^t\in X^t}f^t(x^t)$; $X^t:=\{x\,|\,h^t(x)\succeq 0,d^t(x)\le 0,g^t(x)\preceq 0;x^t_n\in\{0,1\},\forall n\}$.

While the dynamic regret captures the difference between the objective value incurred by our online solution and the sum of the optimal objective value at each time slot, the dynamic fit reflects the violation of Constraint (2c). Recall that (2c) was absorbed into the objective in Algorithm 1; so it is important to quantify the violation of this constraint. We actually have the following result:

Theorem 1: The dynamic regret and the dynamic fit satisfy $\mathrm{Reg}_T\le O(T^{\frac{2}{3}})$ and $\mathrm{Fit}_T\le O(T^{\frac{2}{3}})$. Proof: See Appendix A in our supplementary material. $\square$

Theorem 1 relies on some common assumptions, including the requirement that the variation in the environment is sub-linear, i.e., the cumulative variations of the per-time-slot minimizers and of the per-time-slot constraints grow sub-linearly with time, respectively. Note that the supplementary material is a separate document along with this paper.

We define utility, based on which we further define truthfulness and individual rationality. We prove that our randomized auction mechanism satisfies both of these economic properties.

Definition 2 (Utility): The utility of the bid $n$ at time $t$ is $U^t_n(c^t_n,c^t_{-n})=p^t_n(\hat{c}^t_n,\hat{c}^t_{-n})-c^t_n\mathbb{E}(\bar{x}^t_n(\hat{c}^t_n,\hat{c}^t_{-n}))$ if $\bar{x}^t_n=1$, and $0$ otherwise, where $\hat{c}^t_n$ is the bidding price submitted by the bid $n$; $\hat{c}^t_{-n}$ denotes the bidding prices of all the other bids except the bid $n$; and $c^t_n$ is the true cost of the bid $n$.

Definition 3 (Truthfulness): A randomized auction is truthful in expectation if every bid $n$ maximizes its expected utility by bidding its true cost, i.e., $U^t_n(c^t_n,\hat{c}^t_{-n})\ge U^t_n(\hat{c}^t_n,\hat{c}^t_{-n})$.

Definition 4 (Individual Rationality): A randomized auction is individually rational in expectation if every bid $n$ always achieves a non-negative utility, i.e., $U^t_n(\hat{c}^t_n,\hat{c}^t_{-n})\ge 0$.

Theorem 2: A randomized auction is truthful and individually rational in expectation if and only if the following conditions are met [71]: (i) $\mathbb{E}(\bar{x}^t_n)$ is monotonically non-increasing in $c^t_n,\forall n$; (ii) $\int_0^{\infty}\mathbb{E}(\bar{x}^t_n)dc<\infty,\forall n$; (iii) the payment is in the form of $p^t_n=c^t_n\mathbb{E}(\bar{x}^t_n(c^t_n,c^t_{-n}))+\int_{c^t_n}^{\infty}\mathbb{E}(\bar{x}^t_n(c,c^t_{-n}))dc,\forall n$. Our randomized auction mechanism satisfies these conditions. Proof: See Appendix B in our supplementary material. $\square$

The two economic properties are important because truthfulness encourages the bidder to report its true cost as the bidding price, and individual rationality guarantees no utility loss for the bidder regardless of the auction outcome. We note that Definitions 2~4 and Theorem 2 only deal with $\mathbb{E}(\bar{x}^t_n)$; yet, via Algorithms 1 and 2, we are able to establish $\mathbb{E}(\bar{x}^t_n)=\tilde{x}^t_n$ and further prove that the conditions as required in Theorem 2 can be met by using $\mathbb{E}(\bar{x}^t_n)=\tilde{x}^t_n$. Following Theorem 2, we can design Algorithm 3.

Algorithm 4 neglects the inference loss tentatively and dynamically determines the changing set of the models to host at the service provider's facility as time goes. Our idea is to keep hosting the current set of models until the cumulative model hosting cost exceeds a pre-specified constant times the most recent switching cost of switching from a previous set of models to the current set of models. To determine the set of models that we would want to potentially switch to, we use $\mathcal{P}^t_3$ at each $t$, which is extracted from our original problem $\mathcal{P}_0$.

The coefficient matrix of the constraints of $\mathcal{P}^t_3$ is totally unimodular [72]. Therefore, we can solve $\mathcal{P}^t_3$ with its decision variables in $[0,1]$ via any standard linear program solver, and the optimal solution we obtain will be automatically in $\{0,1\}$. Algorithm 4 adopts the above idea in Line 6, where $k$ is the pre-specified parameter. We also define $C^t_{SC}(y^t,y^{t-1})=\sum_n\Delta^t_n u^t_n[y^t_n-y^{t-1}_n]^+$ and $C^t_{-SC}(x^t,y^t,z^t)=\sum_n x^t_n c^t_n+\sum_n y^t_n(v^t_n+u^t_n(1-\Delta^t_n))+e^t z^t$. $\hat{t}$ records the most recent time slot where a switch operation occurs. In Line 7, we solve $\mathcal{P}^t_3$ to obtain the new hosting decisions. In Line 8, we invoke Algorithms 1 and 2 to get the other control decisions. Lines 9~10 decide whether a model switch operation occurs. In case of no model switch, then we are in Lines 11~13 and keep hosting the existing set of models that are being hosted. We still need to update the other control decisions as the inputs could be time-varying. The time complexity of Algorithm 4 is $O(T\cdot N^2\log(1/\nu))$, based on our previous analysis of the time complexities of Algorithms 1 and 2.

Our motivation for Algorithm 4 is to balance the cumulative switching cost $\sum_t C^t_{SC}$ and the cumulative non-switching cost $\sum_t C^t_{-SC}$, and control this balance by $k$. We want to intentionally establish the relationship of $\sum_t C^t_{SC}\le\frac{1}{k}\sum_t C^t_{-SC}$; that is, $\sum_t C^t_{SC}+\sum_t C^t_{-SC}\le(1+\frac{1}{k})\sum_t C^t_{-SC}$. We consider the total cost to the non-switching cost only, and thus remove the concern on the switching cost which used to be hard to manage. Hereafter, we will further connect the non-switching cost to the offline optimum and prove the competitive ratio, as elaborated in our competitive analysis later.

As the models are selected and specified by Algorithm 4, the key idea of Algorithm 5 is, for each given data sample, using each model to conduct inference and then combining these inference results as a weighted sum to produce the joint, final inference result that will be returned to the end user. Specifically, we adopt the Hedge algorithm [39] to update the weights in an exponential manner based on the loss between the inferred label of each model and the ground-truth label. Lines 4~6 conduct weight normalization. Line 8 produces the joint inference result. Lines 11~13 are the Hedge steps, preparing for the next data sample in the stream. The time complexity of Algorithm 5 is $O(NM^t)$, where the loops in Lines 4 and 11 have $N$ iterations, and Line 2 has $M^t$ iterations.

We show that the inference loss cumulatively incurred by our ensemble learning algorithm upon the entire data stream could be no worse than a parameterized constant times the sum of the optimal loss in each time slot incurred by the single best model out of the selected models for that time slot. We also define the competitive ratio and exhibit that our proposed approach leads to a parameterized-constant competitive ratio. We introduce some additional notations. We write the social cost as $C=\sum_t(C^t_L+C^t_{-L})=\sum_t(C^t_L+C^t_{SC}+C^t_{-SC})$, where $C^t_L=\sum_m((\sum_n\alpha^t_{n,m}h^t_n(a^t_m)+\beta^t_mh^t(a^t_m))-b^t_m)^2$ is the loss at $t$, and $C^t_{-L}=C^t_{SC}+C^t_{-SC}$ is the non-loss social cost at $t$; and $C^t_{SC}$ and $C^t_{-SC}$ are as in Section IV-A.

Theorem 3: With $\mu^t_m=\sqrt{8\ln I_t/m}$, we have $\sum_t C^t_L\le\sum_t C^{t*}_L[1+\theta_1(2\sum_t\ln I_t+\sqrt{\frac{M^t}{8}\sum_t\ln I_t})]$. $I_t$ is the number of the models hosted at $t$. $C^t_L$ is the loss incurred jointly by the $I_t$ models as in Algorithm 5 upon the data samples $\mathcal{M}^t$. $C^{t*}_L$ is the optimal loss incurred by the single best model out of the $I_t$ models upon the data samples $\mathcal{M}^t$, assuming $\sum_t C^{t*}_L\ge1>0$ where $\theta_1\ne0$ is a constant. Proof: See Appendix C in our supplementary material. $\square$

Theorem 4: Our entire proposed approach is "$r$-competitive" for the problem $\mathcal{P}_0$. If we use $C$ to denote the objective value of $\mathcal{P}_0$ incurred by our approach, and $C^*$ to denote the sum of the social cost (except the loss) in the offline optimum of $\mathcal{P}_0$ plus the cumulative per-time-slot optimal loss incurred by the single best model out of the selected models in each corresponding time slot, then we have $C\le rC^*$, where $r=\max\{r_1,r_2\}$, $r_1=1+\theta_1\rho(2+\frac{1}{2}\sqrt{\sum_t M^t\ln I_t})$, and $r_2$ is defined by $R_T$, $k_2$ and $\min_t I_t$ as implied by Algorithm 4, assuming $\sum_t C^{t*}_L\ge1>0$ where $\theta_2\ne0$ is a constant; $k_2$ is the constant in Algorithm 4; and $\rho$ and $R_T$ are also constants. Proof: See Appendix D in our supplementary material. $\square$

Theorem 4 captures the competitive ratio and thus the multiplicative gap between the objective value of $\mathcal{P}_0$ incurred by our proposed online approach and that of $\mathcal{P}_0$ in a particularly specified case. This particular case is that we use the social cost (except the inference loss) from the offline optimum of $\mathcal{P}_0$, and use the inference loss incurred cumulatively by the per-time-slot single best model out of the ensemble in each time slot, where the ensemble is chosen as in the offline optimum of $\mathcal{P}_0$. Alternatively, one may want to quantify the multiplicative gap between our approach and the offline optimum of $\mathcal{P}_0$ directly; if so, in the offline optimum of $\mathcal{P}_0$, the inference loss is incurred by the best ensemble which may vary dynamically as time goes. Here, we choose not to directly compare to the offline optimum of $\mathcal{P}_0$ in order to get aligned with the convention of the "learning from experts" setting [39]. The comparison to the offline optimum of $\mathcal{P}_0$ can be of independent interest, which we would like to postpone to future work.

Datasets: We use two real-world datasets and two widely-used benchmark datasets, all with concept drifts [22], [23], [24], [25], [26].

Models: We consider 8 ∼ 64 model providers, and divide the first 80% data evenly into 8 ∼ 64 pieces and train the models correspondingly. We use the rest 20% data as the data stream for the service provider, arriving in a uniform manner. Without loss of generality, we adopt the decision trees as the models in our evaluations (unless otherwise specified), aligned with lots of existing ensemble learning research [21], [25], [26]; specifically, we consider the Classification And Regression Tree (CART) [73]. We also consider the Support Vector Machine (SVM) [21], [74] and the Multilayer Perceptron (MLP) (as in deep learning) as other base models for comparison. We consider $|T|=100$ minutes, with 1 minute per time slot.

Costs and Bids: We consider the Alibaba Cloud [45] of 29 regions and 88 availability zones worldwide [46], with each region often having multiple availability zones. We choose Beijing, China as the location of the service provider's cloud, and use all the other regions with their 76 availability zones as the model providers' clouds (and we consider up to 64 of them), where each availability zone corresponds to a model provider. We can thus use the geographical distance to estimate the network delay as the model downloading cost. We use the electricity cost as the model hosting cost, following the hourly real-time electricity prices of ComEd in January, 2024 [47]. The participation threshold of model providers is uniformly generated in [0, 1] [17], [20], and the service provider's maximum number of models that can be purchased from each auction is in [6, 10]. The bidding price is from [5, 18] $, following the electricity consumption for model training [48]. The model variation indicator is set to 1 (i.e., model unchanged) by default, unless otherwise noted.

Algorithms: We implement multiple algorithms.

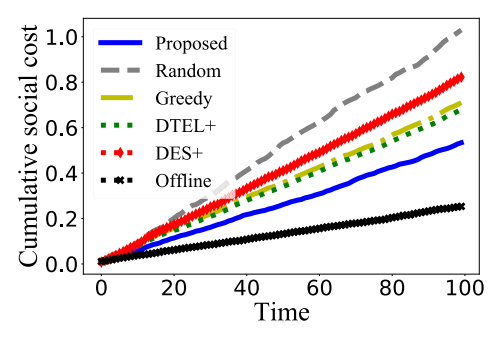

Fig. 5 shows the normalized social cost of different algorithms in the cumulative manner as time goes, when there are 8 bids in every auction. Our approach shows a slower growth trend of the cumulative social cost than all others, and is the closest to the offline optimum. We have also conducted the evaluations on the real-time cumulative social cost for 16, 32, 48, and 64 bids, respectively, and they show similar trends.

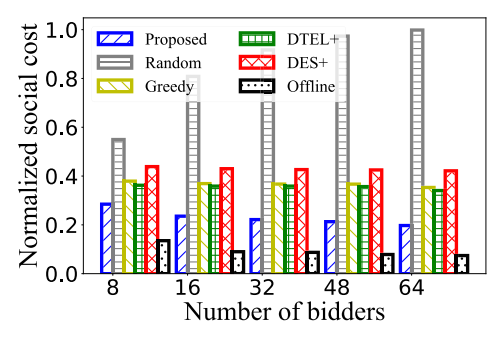

Fig. 6 presents the normalized average social cost of different algorithms. As the number of bidders increases, compared to Random, Greedy, DTEL+, and DES+, our approach reduces the social cost on average by 70%, 37%, 35%, and 46%, respectively. Note that even though DES+ has better inference accuracy than DTEL+, the former incurs larger loss when its inference is incorrect, thus greater social cost. The empirical competitive ratio of our approach is 2.1∼2.7. The social cost of our approach decreases as the number of bidders grows because there are more bids to choose from for further cost reduction, which shows the scalability of our approach.

Fig. 7 shows the impact of the model hosting budget on the normalized average social cost. As more models are allowed to be hosted, the social cost increases for all algorithms; and ours still incurs the lowest social cost, except the offline optimum.

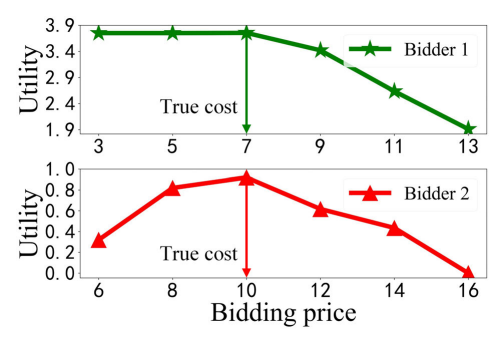

Fig. 8 verifies the truthfulness of our auction mechanism. We select two bids randomly as the example. As shown, if the bid bids its true cost, i.e., 7$ and 10$, respectively, then it achieves the highest utility. The utility could drop vastly if the bidding price is not the same as the true cost.

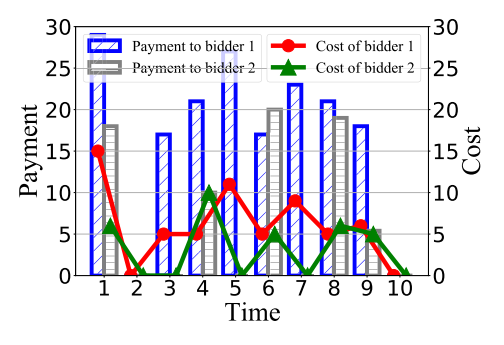

Fig. 9 checks the individual rationality of our auction mechanism. We randomly select two bids and record the changes of their bidding price and corresponding payments over 10 consecutive slots. We see that the payment received is always no less than the bidding price. Note that when a bid does not win in an auction, the payment defaults to zero.

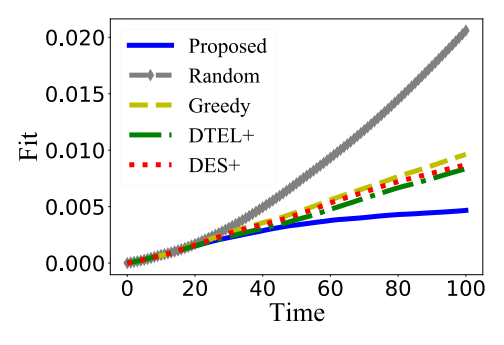

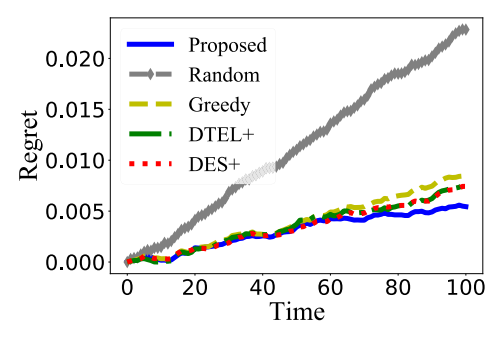

Fig. 10 and Fig. 11 exhibit the dynamic regret and the dynamic fit of different algorithms for P1, as the total length of the time horizon varies. Our approach has the lowest dynamic regret and fit, also confirming that our regret and fit grow only sub-linearly with time, aligning with our theoretical analysis.

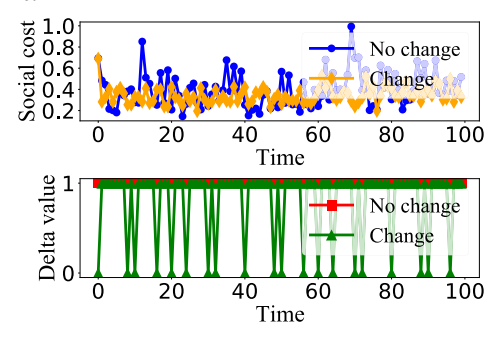

Fig. 12 illustrates how model variations can impact the social cost. In our experiments, we simulate model variations as the model provider using the additional training data from another model provider to update its own model. When models in the market undergo such updates, the social cost exhibits less fluctuation compared to the social cost of models that are static. This is because updated models could more easily adapt to data streams, thereby minimizing the inference loss.

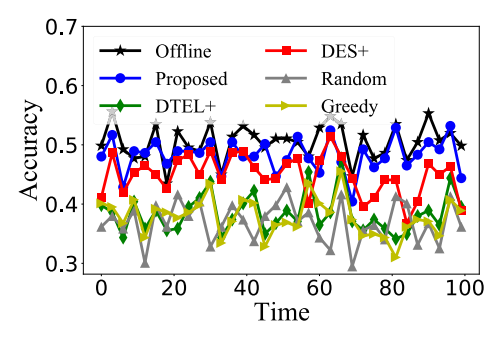

Fig. 13 evaluates the inference accuracy in each time slot over the entire data stream of the Posture data. The results for other datasets are similar. Our approach not only achieves the highest accuracy in all the time slots, but is also relatively more stable; the accuracy results of other algorithms fluctuate dramatically and are more sensitive to the concept drift.

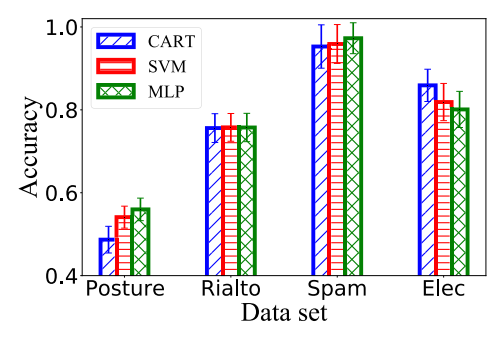

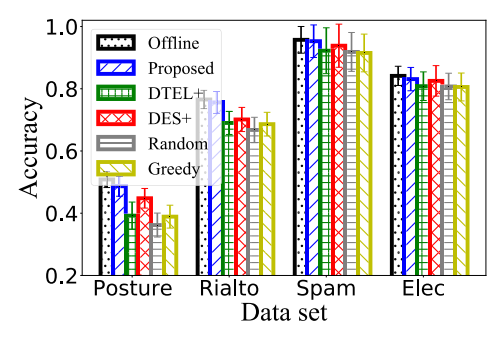

Fig. 14 and Fig. 15 visualize the inference accuracy averaged over time and the standard deviation upon the entire data stream. The standard deviation is calculated based on the inference accuracy of each time slot, representing the sensitivity to concept drifts and the stability of the algorithm [25]. Fig. 14 exhibits significantly better accuracy upon all four data streams and exhibits lower standard deviation compared to others on most data streams, indicating that our approach is less sensitive to concept drifts and is more stable. Fig. 15 exhibits that our algorithmic approach can work with different types of base models in the ensemble learning process. Different base models can be more preferred for different datasets.

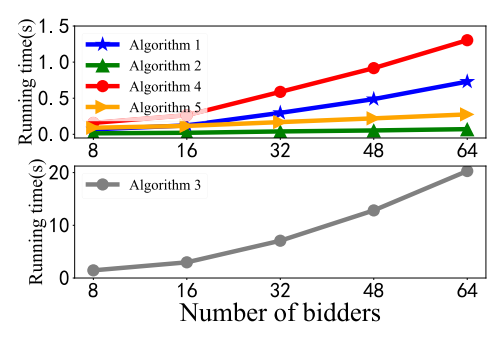

Fig. 16 depicts the execution time of each algorithm in our approach. As the number of bidders reaches 64, Algorithms 1∼5 can complete in 0.73 seconds, 0.07 seconds, 20.30 seconds, 1.30 seconds, and 0.28 seconds for each auction, performing well compared to the length of a single time slot. This shows the computational efficiency of our approach in practice.

Our goal in this work is jointly optimizing the cost and the inference loss, as captured by the problem P0. It is yet crucial to manage the balance or trade-off between the cost and the inference performance of the models. One approach is to associate weights to the different terms in the objective function of P0. We leave to the service provider to decide the weight for each term in the objective function, depending on its own needs and requirements. In our current evaluations, the weights for the cost of the auctioneer, the cost of the bidders, and the inference loss in the objective are all set equal.

Our strategy for solving P0 is decoupling the cost from the inference loss, and addressing the former first and the latter afterwards. With this strategy, we can already achieve multiple provable performance guarantees. In particular, Theorem 3 implies that at each time slot, as we update the weights for the models in the ensemble, the inference loss incurred by our model ensemble is no greater than a parameterized constant times the inference loss incurred by the single best model in terms of the inference loss in the ensemble at hindsight.

There could be multiple methods to address the cheap models that have bad inference performance. First, an empirical method could be filtering out such models and ruling out such bids from participating in the auction before the auction starts. To do so, the system should allow the service provider to use a testing dataset to pre-check the performance of each model from the model providers. Second, a more systematic method could be based on modifying our algorithms in the manuscript without filtering out any bids in prior.

To simultaneously consider cost and inference performance, we would want to modify our problem $\mathcal{P}^t_3$, solved within Algorithm 4, by adding the inference loss to the objective and adding the constraints (1c)∼(1e). Solving this new $\mathcal{P}^t_3$ faces new challenges: the data samples $M^t$ are unknown; the new $\mathcal{P}^t_3$ now is a mixed-integer non-linear program, harder to solve; determining the weights for the models here may interfere with our current Algorithm 5; and Algorithm 4 that solves the new $\mathcal{P}^t_3$ can impact our current Theorems 3 and 4.

Third, a new and different method could be incorporating the inference loss directly into the process of determining which bids to procure in each auction. This is non-trivial, and will raise the fundamental question of how to ensure truthfulness and individual rationality when part of the objective function for the auction is unknown, i.e., the inference loss is unknown as the data samples are unseen.

The time slots correspond to the decision frequency, depending on the system under control and the service provider. Our models, formulations, algorithms, and analysis consider the length of each time slot as pre-specified [76]. Yet, the length of the time slot or the frequency of the control decisions indeed impacts the social cost over time. We consider two cases as follows, both taking exactly the same inputs as P0.

The first case is that every time slot t is divided into J smaller “time intervals” of equal length, which are indexed as $\mathcal{J}=\{1,2,\ldots,J\}$, and we make the control decisions for each time interval $j\in\mathcal{J}$ of each time slot t. The control decisions can thus be written as $x^{t,j}_n$, $y^{t,j}_n$, $z^{t,j}$, $\alpha^{t,j}_{n,m}$, and $\beta^{t,j}_m$. $M^{t,j}$ can represent the set of data samples that arrive at the time interval j of the time slot t, where $\cup_{j=1}^{J}M^{t,j}=M^t$, $\forall t$. Based on these, we can transform the problem P0 to the problem $P'_0$.

We also consider another problem $P''_0$, which is defined as $P'_0$ with the additional constraints that the bid selection and model hosting decisions for all the intervals within a time slot must stay unchanged (but are allowed to change across time slots). For the problems of P0, $P'_0$, and $P''_0$, we use P0, $P'_0$, and $P''_0$ to denote their objective functions, use the subscript OPT to denote the offline optimal objective value, and use $X^*$ to denote the offline optimal solution to P0. Then, we have

$P'_{0\mathrm{OPT}}\overset{(a)}{\le}P''_{0\mathrm{OPT}}\overset{(b)}{\le}P''_0(X^*)\overset{(c)}{\le}J\cdot P_0(X^*)\overset{(d)}{=}J\cdot P_{0\mathrm{OPT}}$.

Inequality (a) holds, as $P'_0$ and $P''_0$ have the same objective function, but the latter has a more restricted solution space due to the additional constraints. Inequality (b) holds, because $P''_{0\mathrm{OPT}}$ is the optimal value of $P''_0$. Also, note that $P''_0$ and P0 have exactly the same solution space. Inequality (c) holds for any feasible solution, if we just apply the additional constraints to the objective function $P''_0$. Equality (d) holds, due to the definition of $X^*$. Overall, the offline optimal social cost incurred by such per-time-interval fine-grained control is no greater than J times the offline optimal social cost incurred by the per-time-slot coarse-grained control.

The second case is that the entire time horizon is divided into J larger “time frames” of equal length, which are indexed by $\mathcal{J}$, and each time slot uniquely belongs to a time frame, where the set of all the time slots of the time frame j can be represented as $T_j$; so, we make the control decisions for each time frame $j\in\mathcal{J}$. Note that in this case the corresponding version of the problem $P'_0$ can be equivalently defined as P0 with the additional constraints that the bid selection and model hosting decisions for all the time slots within a time frame must stay unchanged (but are allowed to change across time frames). It is obvious that $P'_{0\mathrm{OPT}}\ge P_{0\mathrm{OPT}}$, as the former has a more restricted solution space. Overall, the offline optimal social cost incurred by such per-time-frame coarse-grained control is no less than the offline optimal social cost incurred by the per-time-slot fine-grained control.

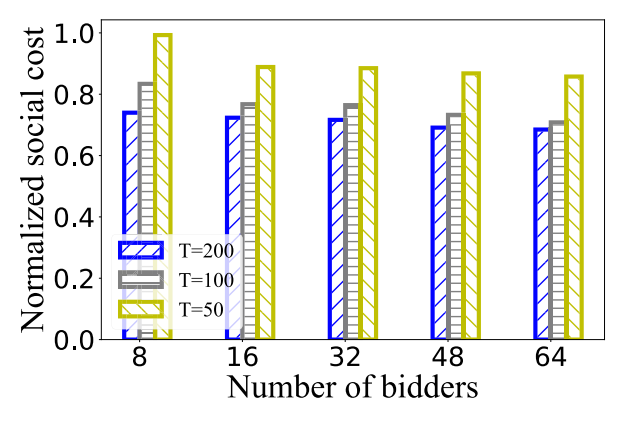

We have conducted new evaluations to investigate how the length of the time slot can impact the social cost incurred by our proposed approach in practice. For Fig. 17, we take the same inputs as our existing evaluations, with the same length of the entire time horizon, i.e., 100 minutes. Yet, we divide the time horizon into T = 50, 100, and 200 time slots, where the length of a single time slot is 2 minutes, 1 minute, and 0.5 minutes, respectively. We see that, as the time slot length increases, the total social cost increases, and that, as the time slot length decreases, the total social cost also decreases.

We categorize the previous research into three groups and highlight their drawbacks compared to our work, respectively. We also summarize and recap the uniqueness of our work.

Ensemble Methods for Concept Drifts: Elwell and Polikar [21] trained a new classifier for each batch of data and used a dynamically-weighted majority-voting method to combine these classifiers. Jiao et al. [22] employed the K-nearest neighbors (KNN) method for dynamically selecting ensemble classifiers for each incoming data sample, and the final classification result is determined through a soft majority vote of multiple base classifiers. Zhao et al. [23] reused historical models for the ensemble and adaptively adjusted the weights for them. Liu et al. [24] utilized an instance-weighting method to adjust the sample weights and an ensemble diversity measure to select the classifiers. Sun et al. [25] exploited a diversity-based strategy to preserve the historical models. Lu et al. [26] trained individual classifiers by adaptively determining the data chunk size and the classifier weights.

These works study various different ensemble approaches to tackle concept drifts; however, they only consider the inference loss without the system cost and overhead, and none of them has considered the cloud/edge environment.

Ensemble Learning at Cloud/Edge: Yao et al. [27] built an ensemble of classifiers and combined the prediction results through majority voting in edge-assisted anomaly detection. Stephanie et al. [28] constructed ensembles via using local models to produce a generalized final model with high accuracy. Shlezinger et al. [29] proposed edge ensemble which enabling diverse predictors on each device to form a deep ensemble during the inference process. Bai et al. [30] built a deep neural network ensemble according to the features of admitted inference tasks to optimize the inference quality. Zhang et al. [31] adopted ensemble methods to improve the classification accuracy for meteorological applications in cloud/edge systems. Zong et al. [32] employed an ensemble of constituent caching policies for edge caching.

This line of research is often focused on an offline perspective, and does not typically consider the data streaming scenario in an online setting. None of them covers any incentive or market mechanism in the ensemble learning context.

AI Model Markets: Chen et al. [12] proposed the first formal framework for the ML model marketplace, employing a model-based pricing mechanism instead of data-based pricing. Weng et al. [33] deployed the marketplace on the blockchain and determined the model price based on the true performance. Sun et al. [34] adopted a distributed federated-learning-based marketplace with privacy and incentive considerations. Liu et al. [13] proposed an end-to-end marketplace and built compensation functions for data owners and price functions for buyers. Cao et al. [35] proposed an edge federated ML model marketplace with cost evaluation. Nguyen et al [36] designed a distributed model marketplace based on blockchain and considered the incentive mechanism in IoT networks.

These works mainly adopt direct pricing, rather than auctions, without proving the economic properties as in our work. They also lack the consideration of the long-term constraints and the online setting that feature the problem we study.

Overall, our research in this paper is different from works of the three groups as described above and is superior in the following aspects: (i) our mechanism consists of dynamic and repetitive auctions, capturing the long-term participation of bidders and achieving the desired economic properties in expectation; (ii) our mechanism works for unknown future inputs and streamed data in online settings, while controlling the state switching of model hosting in real time; and (iii) our mechanism adopts the model ensemble method to equip the service with robustness and stability against arbitrary concept drifts in the data streams in the cloud computing environment.

Provisioning adaptive and accurate inference on streamed data is generally desired in a wide range of cloud services, yet gets largely overlooked in previous research. In this paper, we aim to bridge this gap. We take a unique perspective of acquiring models dynamically from the auction market and combining them with the service provider's own model to conduct ensemble learning. We design online algorithms with provable performance guarantees and economic properties to achieve the long-term optimization of system overhead and inference loss collectively for both the service provider and the model providers. We also conduct comprehensive and thorough evaluations with real-world and benchmark datasets under realistic settings to validate the performance of our approach from a variety of different angles. We hope our work could inspire more new research along this direction.
